LIMAC R3000D Series CNC router

R3000D series cnc router is with two spindles: one vertical spindle for engraving/cutting the surface, and one horizontal spindle for drilling holes or engraving on the two sides of the material. It is specially designed for door making factories, and also suitable for manufacturing of kitchen cabinet, craftwork, sign making, and other mass production areas.

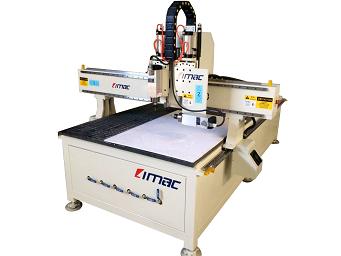

r3000 router

LIMAC R3000D Series CNC Router Features

  • Vacuum or T-slot table as requested by customer
  • Gantry made of steel
  • Helical rack and pinions
  • Taiwan LNC/Syntec controller as standard with remote control capability
  • Vertical spindle: 4.5kw as standard; horizontal spindle: 3kw as standard
  • Power Requirements: 380V.
  • Electricity consumption is 10kw (without vacuum pump)
  • Stepper motors as standard can be upgraded to Japan YASKAWA Servo motors
  • Continue working from the last point where machine stops in case of sudden power off
  • Compatible with TYPE3, ArtCAM, Castmate, Enroute, MasterCAM, UG, Alphacam, Pro E, and most CAM software on the market
  • Graphics format supported: BMP, TIF, EPS, AI, PLT, IGS, ISO, etc.
  • Rack/pinion on X,Y axes; ball screw on Z axis
  • Taiwan linear guide rail, heavy-duty bearing, ball screw from Germany.
  • Two Y axes motors ensures high speed and big power.
  • Job Preview ensures no material is wasted.
  • Stand-alone controller, DSP hand-held keypad (compatible with U disk).

LIMAC R3000D Series CNC Router Specifications

MODEL

R3101D

R3102D

R3103D

R3204D

R3304D

Max. Working Area

1270mm * 1270mm
(4'x 4')

1270mm * 1800mm
(4'x 6')

1300 mm* 2540mm
(4.3'x 8.3')

1600mm *3048mm
(5'x 10')

2032mm * 3048mm
(6.7'x 10')

Gantry height

300mm
(1')

300mm
(1')

300mm
(1')

300mm
(1')

300mm
(1')

Max. Traverse

40m/min (133'/min)

40m/min (133'/min)

40m/min (133'/min)

40m/min (133'/min)

40m/min (133'/min)

Max. Cutting Speed

30m/min (100'/min)

30m/min (100'/min)

30m/min (100'/min)

30m/min (100'/min)

30m/min (100'/min)

Compatible File Format

HPGL, G code, NC file

HPGL, G code, NC file

HPGL, G code, NC file

HPGL, G code, NC file

HPGL, G code, NC file

Weight(kg)

1400

1500

1600

1800

2000

* (Bigger sizes are available.)

Options:

  • Spindle
  •   Air-cooled spindle from China: from 1.5kw/2hp to 6kw/8hp
      HSD/Colombo/Elte/Perske fan-cooled spindle: from 2.2kw/3hp to 6kw/8hp
  • CAD/CAM software
  •   TYPE3, ArtCAM, Castmate, Enroute, MasterCAM, Vectric, UG, Alphacam, Vectric, Pro E
  • Air coolant system for metal cutting from Canada
  • Dust Collector from China
  •   2.2kw/3hp, one bag
      3kw//4hp, two bags
      4kw/5hp, two bags
      5.5kw/7hp, two bags
      7.5kw/10hp, four bags
  • Vacuum Pump
  •   Water-ring Vacuum Pump: 5hp, 90CBM/Hr; or 10hp, 180CBM/Hr
      Oil Vacuum Pump: 100CBM/Hr, or 160CBM/Hr, or 250CBM/Hr, 10hp
      Rotary-vane dry pump: 100cbm/hr, 160cbm/hr, 250cbm/hr
      German Becker vacuum pump: 250cbm/hr
  • Digitize probe
  • Floating ring
  • 3D laser scanner
  • Japan YASKAWA AC Servo motors
